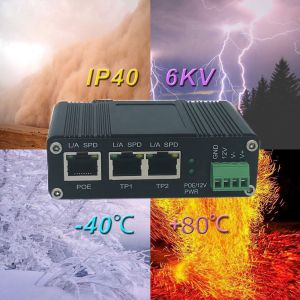

    12VDC Output Industrial IEEE802.3af/at PoE Splitter with 2 Ports PoE Switch Function

    12VDC Output Industrial IEEE802.3af/at PoE Splitter with 2 Ports PoE Switch Function

    Model: LNK-SPL01 Series


    Overview


    Features


    Warranty

    • 5-Year Warranty

    Technical Indexes

    Ethernet
    Standards:IEEE802.3af Power over Ethernet
    IEEE802.3at Power over Ethernet
    Processing Type:Forward
    Half-duplex, Full-duplex
    Forward Filter Rate:1,488,000pps (1000Mbps)
    Cabling:1000Base-T: Cat5 or above
    Maximum Distance:Cat5 UTP up to 100m
    Connector:2x RJ45
    Environmental
    Operating Temperature:-40°C to 75°C (-40°F to 167°F)
    Storage Temperature:-40°C to 85°C (-40°F to 185°F)
    Relative Humidity:5% to 95% non-condensing
    MTBF:>200,000hrs
    Electrical and Mechanical
    Output Power:20W/12VDC (Terminal Block)
    Power Consumption:25W Max.
    LED Indicators:
    PoE In:PoE PSE Power In
    5V:DC 5V Output
    Dimensions (WxDxH):95 x 70 x 30 mm
    Weight:0.25Kg
    Casing:Aluminum Case
    Mounting Options:DIN-Rail / Wall-mount

    Order Information

    ModelDescription
    LNK-SPL01Industrial PoE splitter with 2-port Switch function: 1-port PoE+ In + 2-port Ethernet Data Out (switch function), maximum output of 20 W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
    Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
    Power Options► 20W 12VDC output with 2-pin open wire terminal block
